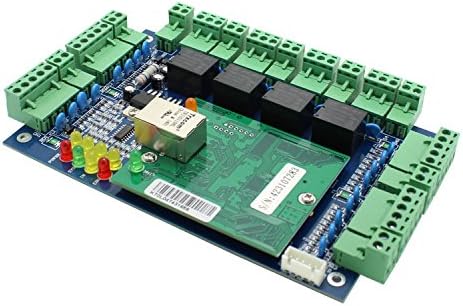

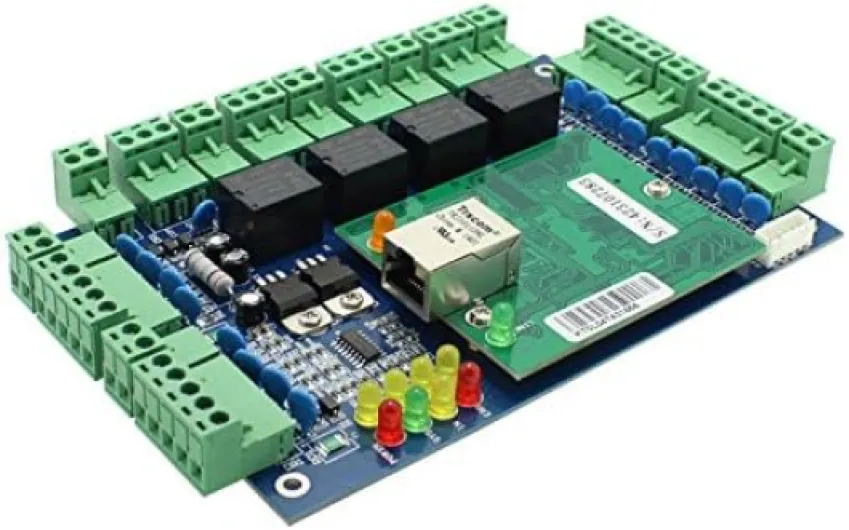

MENGQI-CONTROL 4 Doors Access Control System Core Control Components Metal 5A 110V-240V Power Supply Box and 4 Doors TCP/IP Access Control Panel Wiegand Controller,Computer Based Software,Remote Open 4 Door Board & Power Box

• ＋ 4-door control with TCP/IP networking and Wiegand support
• ＋ All-in-one kit: controller board plus metal 5A power supply box included
• ＋ Computer-based software with remote open functionality
• ＋ Wide voltage range: 110–240V input
• ＋ Metal enclosure for better durability and protection

• Control 4 doors, get in door by swiping card, get out door by exit button or by swiping card,support 4 readers.Can Store/download/check Entry Detail records.
• User capacity: 20,000 user, record capacity:100,000. Auto open/close at any pre-set time during any day. Support "who" can enter which door at certain time, authorized access control.Also support swipe 4 times continuously to keep door open.
• Record never lost in case of power failure.The power supply box with 110-240V input, 5A output, powers the whole system,also act as the cabinet for the control board.Input format of reader Wiegand 26/Wiegand34 (all card reader with compatible protocol, RFID/Mifare/HID).
• Network communication via TCP/IP. Software supportable database: access & SQL server. Support Win7/Win8/Win10/Win11 both 32 & 64 bit ALL Windows system.
• This is Core part of a complete access control system, if you need full kits for lock/reader/exit button, etc,contact us freely, we have 20 years experience.
